Practice Test - Static Pods



kubelet이 지정하는 Directory는 어느 Directory에나 될 수 있으나 그 디렉토리안에 반드시 Static POD의 Definition Yaml 파일이 있어야 한다.





ps -aux | grep kubelet 을 통해 config 값의 위치를 확인할 수 있다.



root      4835  0.0  0.1 4003092 107740 ?      Ssl  06:39   1:06 /usr/bin/kubelet --bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.conf --kubeconfig=/etc/kubernetes/kubelet.conf --config=/var/lib/kubelet/config.yaml --network-plugin=cni --pod-infra-container-image=k8s.gcr.io/pause:3.2

여기서 위치는 /var/lib/kubelet/config.yaml이다.



cat /var/libe/kubelet/config.yaml 을 해보면

apiVersion: kubelet.config.k8s.io/v1beta1
authentication:
  anonymous:
    enabled: false
  webhook:
    cacheTTL: 0s
    enabled: true
  x509:
    clientCAFile: /etc/kubernetes/pki/ca.crt
authorization:
  mode: Webhook
  webhook:
    cacheAuthorizedTTL: 0s
    cacheUnauthorizedTTL: 0s
cgroupDriver: cgroupfs
clusterDNS:
- 10.96.0.10
clusterDomain: cluster.local
cpuManagerReconcilePeriod: 0s
evictionPressureTransitionPeriod: 0s
fileCheckFrequency: 0s
healthzBindAddress: 127.0.0.1
healthzPort: 10248
httpCheckFrequency: 0s
imageMinimumGCAge: 0s
kind: KubeletConfiguration
logging: {}
nodeStatusReportFrequency: 0s
nodeStatusUpdateFrequency: 0s
resolvConf: /run/systemd/resolve/resolv.conf
rotateCertificates: true
runtimeRequestTimeout: 0s
shutdownGracePeriod: 0s
shutdownGracePeriodCriticalPods: 0s

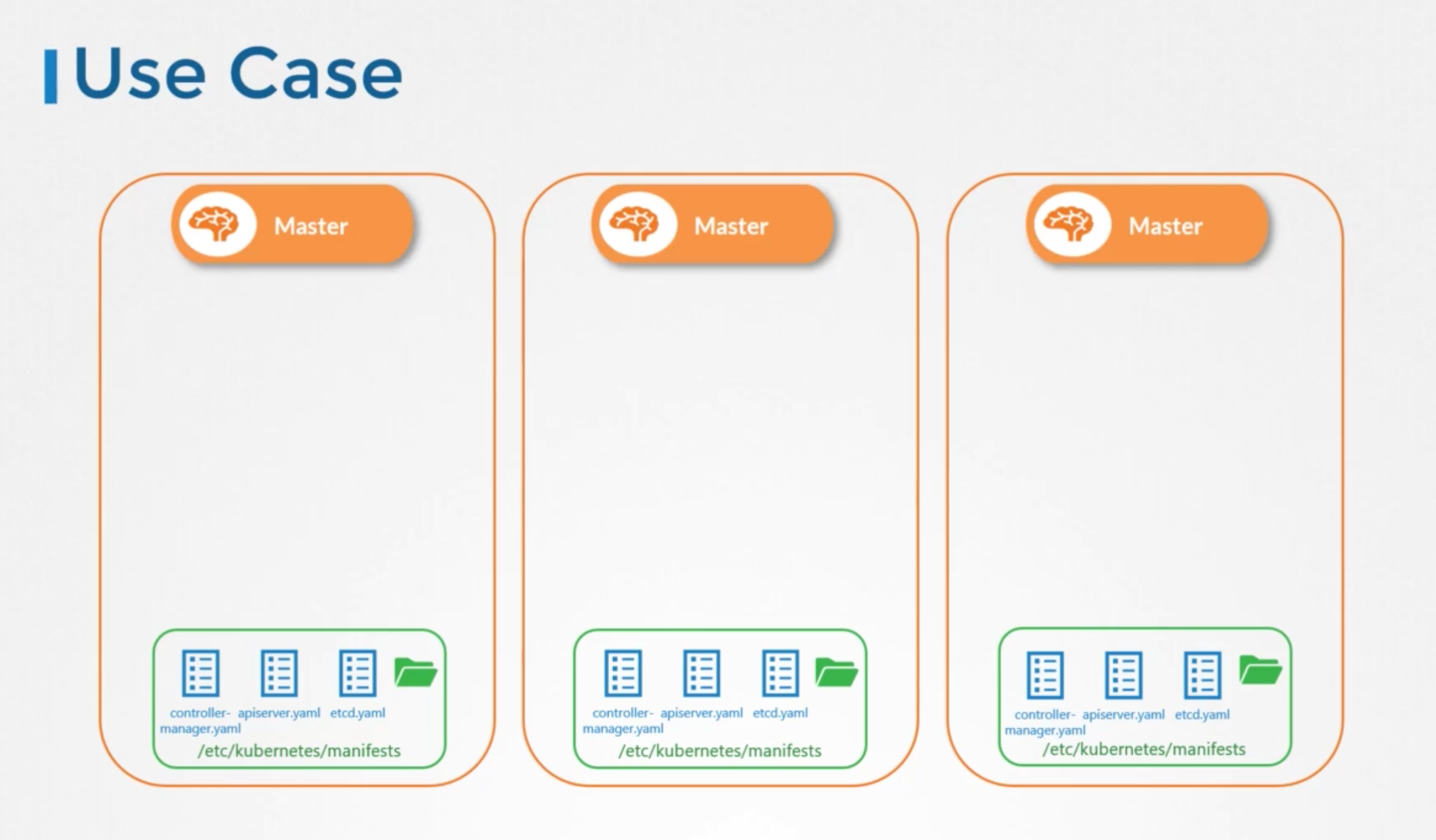

staticPodPath: /etc/kubernetes/manifests
streamingConnectionIdleTimeout: 0s
syncFrequency: 0s
volumeStatsAggPeriod: 0s

위의 yaml에서

staticPodPath: /etc/kubernetes/manifests

경로를 확인할 수 있다.









[Practice Test]



ㅁ How many static pods exist in this cluster in all namespaces?

kubectl get pod --all-namespaces | grep "\-master"



ㅁ Which of the below components is NOT deployed as a static pod?

- coredns

- kube-apiserver

- etcd

- kube-controller-manager



ㅁ Which of the below components is NOT deployed as a static POD?

- kube-scheduler

- kube-controller-manager

- kube-apiserver

- kube-proxy



ㅁ On what nodes are the static pods create?

- controlplane & node01

- node01

- controlplane

- All Nodes



ㅁ What is the path of the directory holding the static pod definition files?



Run the command ps -aux | grep kubelet a

and identify the config file - --config=/var/lib/kubelet/config.yaml.

grep -i static /var/lib/kubelet/config.yaml

Then checkin the config file for staticPodPath.

staticPodPath: /etc/kubernetes/manifests

ㅁ How many pod definition files are present in the manifest folder?

ls -l /etc/kubernetes/manifests/ | wc -l

ㅁ What is the docker image used to deploy the kube-api server as a static pod?

cat /etc/kubernetes/manifests/kube-apiserver.yaml | grep image

ㅁ Create a static pod named static-busybox that uses the busybox image and the command sleep 1000

kubectl run static-busybox --image=busybox --command sleep 1000 --restart=Never --dry-run=client -o yaml > /etc/kubernetes/manifests/static-busybox.yaml

Static Pod의 경우 staticPodPath에 Pod 생성 yaml을 저장하는 것 만으로 Pod가 즉시 생성됨

apiVersion: v1
kind: Pod
metadata:
  creationTimestamp: null
  labels:
    run: static-busybox
  name: static-busybox
spec:
  containers:
  - command:
    - sleep
    - "1000"
    image: busybox
    name: static-busybox
    resources: {}
  dnsPolicy: ClusterFirst
  restartPolicy: Never
status: {}

ㅁ Edit the image on the static pod to use busybox:1.28.4

vi /etc/kubernetes/manifest/static-busybox.yaml
image 수정후 자동으로 Pod 생성

ㅁ Create a new static pod named static-greenbox. Find ti and delete it



Identify which node the static pod is created on, ssh to the node and delete the pod definition file.

If you don't know theIP of the node, run the kubectl get nodes -o wide command and identify the IP.

kubectl get pods --all-namespaces

kubectl get nodes -o wide

Then SSH to the node using that IP.

ssh node01

For static pod manifest path look at the file /var/lib/kubelet/config.yaml on node01

ps -ef | grep kubelete | grep "\--config"

--config=/var/lib/kubelet/config.yaml 확인

cat /var/lib/kubelet/config.yaml

or

grep -i static /var/lib/kubelete/config.yaml



apiVersion: kubelet.config.k8s.io/v1beta1
authentication:
  anonymous:
    enabled: false
  webhook:
    cacheTTL: 0s
    enabled: true
  x509:
    clientCAFile: /etc/kubernetes/pki/ca.crt
authorization:
  mode: Webhook
  webhook:
    cacheAuthorizedTTL: 0s
    cacheUnauthorizedTTL: 0s
cgroupDriver: systemd
clusterDNS:
- 10.96.0.10
clusterDomain: cluster.local
cpuManagerReconcilePeriod: 0s
evictionPressureTransitionPeriod: 0s
fileCheckFrequency: 0s
healthzBindAddress: 127.0.0.1
healthzPort: 10248
httpCheckFrequency: 0s
imageMinimumGCAge: 0s
kind: KubeletConfiguration
logging: {}
nodeStatusReportFrequency: 0s
nodeStatusUpdateFrequency: 0s
resolvConf: /run/systemd/resolve/resolv.conf
rotateCertificates: true
runtimeRequestTimeout: 0s
staticPodPath: /etc/just-to-mess-with-you
streamingConnectionIdleTimeout: 0s
syncFrequency: 0s
volumeStatsAggPeriod: 0s

staticPodPath: /etc/just-to/mess-with-you를 찾아서 경로 이동

cd  /etc/just-to/mess-with-you

에서 file delete 하면 static-pod는 알아서 삭제됨.
