Practice Test - Certificates API



$ openssl genrsa -out jane.key 2048

jane.key



$ openssl req -new -key jane.key -subj "/CN=jane" -out jane.csr

cat jane.csr | base64



jane-csr.yaml

apiVersion: certificates.k8s.io/v1beta1
kind: CertificateSigningRequest
metadata:
  name: jane
spec:
  groups
  - system:authenticated
  usage:
  - digital signature
  - key encipherment
  - server auth
  request:
    [cat jane.csr | base64 부분 추가]





kubectl get csr



kubectl certificate approve jane



kubectl get csr jane -o yaml

echo "LSo..Qp" | base64 --decode

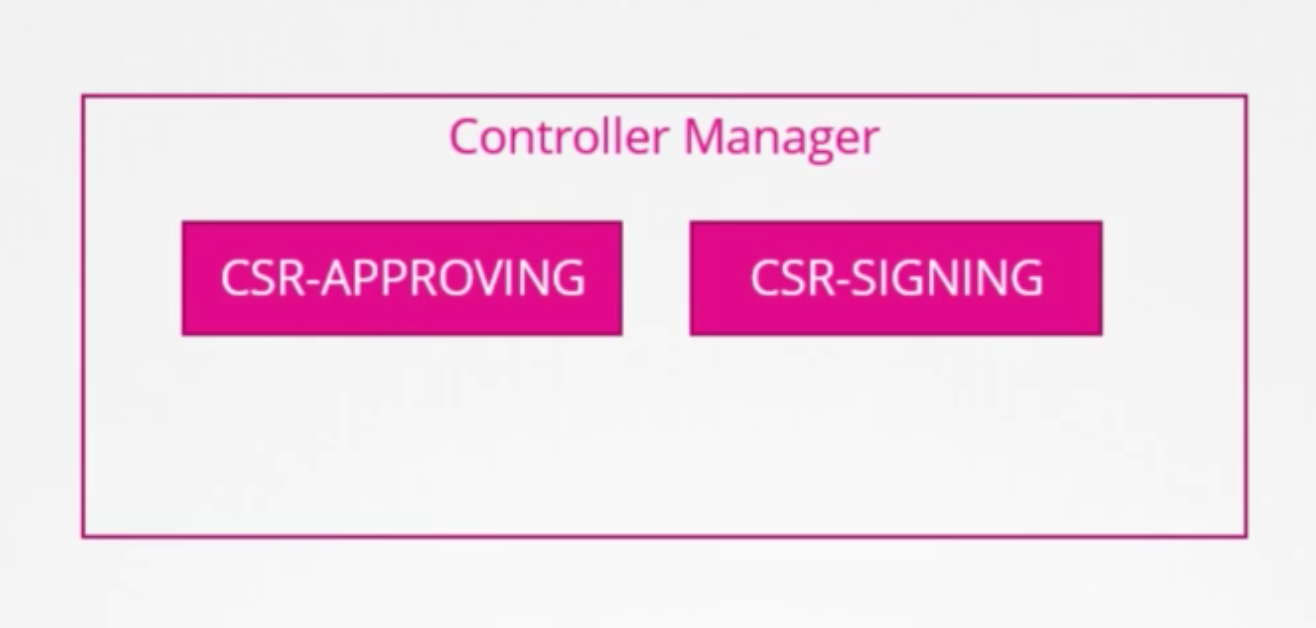

cat /etc/kubernetes/manifest/kube-controller-manager.yaml



[Practice Test]



ㅁ A new member akshay joined our team. He requires access to our cluster. The Certificate Signing Request is at the /root location.



ㅁ Create a CertificateSigningRequest object with the name akshay with the contents of the akshay.csr file

cat akshay.csr | base64 | tr -d "\n"



 akshay-csr.yaml

apiVersion: certificates.k8s.io/v1
kind: CertificateSigningRequest
metadata:
  name: akshay
spec:
  groups:
  - system:authenticated
  request: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURSBSRVFVRVNULS0tLS0KTUlJQ1ZqQ0NBVDRDQVFBd0VURVBNQTBHQTFVRUF3d0dZV3R6YUdGNU1JSUJJakFOQmdrcWhraUc5dzBCQVFFRgpBQU9DQVE4QU1JSUJDZ0tDQVFFQW9SVktqNzIvYWtjQnRMbll6dkZieUh2QzhXV3piamdreThzZTJKS2xTdi9UCnAwdloybzZhbDFZQjRZUG8rRDFHNDR6dWl0Q2VMdUJiL2hsNlFReTg5UXpLZVRLdk1uT2twNU9JOVFoTVNiNEMKdHQzY0w2S0VDMHhQNDE0RFprUjBjaFhkYzlHZ1IvZm40bEluT3Nha3hnSS9veUY0VlFpUHluRzlwMlZsU1FONwpqV3hHSzJCV3lsMW5BRlM5cFdRTzBUREdoMko3RmRmN25XbnArSFA3bzFjK3ZNQTJqTUpvOTFpMFpmbk82NWtzClVob2NzYjBlYnVQTnFHY3ZZdkZWTG9kTlAreHd1OW1KdDAyTll6UnB5UjcrSGt3VlBoN3BKR3FYUVhyU2NRUzcKZmJWTDdEZkdERkxSakJIUDJSQTJoa2dVNDdZLzN4WDE5d2ZQZjhIZ01RSURBUUFCb0FBd0RRWUpLb1pJaHZjTgpBUUVMQlFBRGdnRUJBSEwweHBKMithc3hidHNRc0FxY2paVkhhYzAxOVBUUE14d0tkdGpqZXp3Q2FqcVdGLzhaCnFEeVBlQlRJL1lUM2tEQmpUbjk2dVJCelYvc1pXVk45QStvZHFwR0tQUllBRVhFanQxZFFkN2JTMTFaeXk4OTcKRzdPdkU0QVpCby9WR1lhb1U0eFREYi9pUmxhV1g4bnFTUksxVXR0NGY5N0IzaDV0VDZEWFVBc1RuaFdqTzFrbgpYNWZ2cjcxWHpaVDZNdTdFWE9iT0ZaZld4eXBURDZnRWVPcTVIL2hYRkl2bzBaTFFnOUJDSWZVRFh5emxkdjcrCldUdWFuTGtWTitFVEhPSnNVYVBFWExMYTFlRWRzeXp1ck4yQXhUb3F5Z0t3RFFrd3A1WjFLWm5qclVFS3pqeWcKamZQWlBkelpPUlRUNkdUbmw0MkxPMEg2ZDdadXA3UGJDZ0k9Ci0tLS0tRU5EIENFUlRJRklDQVRFIFJFUVVFU1QtLS0tLQo=
  signerName: kubernetes.io/kube-apiserver-client
  usages:
  - digital signature
  - key encipherment
  - server auth

kubectl apply -f akshay-csr.yaml

전체  CSR  확인

kubectl get csr

NAME        AGE   SIGNERNAME                                    REQUESTOR                  CONDITION
akshay      10s   kubernetes.io/kube-apiserver-client           kubernetes-admin           Pending
csr-drpth   40m   kubernetes.io/kube-apiserver-client-kubelet   system:node:controlplane   Approved,Issued
csr-hwx8z   39m   kubernetes.io/kube-apiserver-client-kubelet   system:bootstrap:96771a    Approved,Issued

이중 akshay CSR 승인

kubectl certificate approve akshay

CSR 상태 확인

kubectl get csr



pending된 CSR 승인

kubectl certficate approve akshay



ㅁ During a routine check you realized that there is a new CSR request in place. What is the name of this request

kubectl get csr



ㅁ You are not aware of a request cocming in. What groups is this CSR requesting access to? check the details about the request. Preferebly in YAML.

kubectl get csr/agent-smith -o yaml



ㅁ That doesn't look very right. Reject that request.

kubectl certificate deny agent-smith



ㅁ Let's get rid of it. Delete the new CSR object.

kubectl delete csr agent-smith



세부 사항은 아래 Site 확인

kubernetes.io/docs/reference/access-authn-authz/certificate-signing-requests/#kubernetes-signers

Certificate Signing Requests
