Practice Test - Securing Image

nginx-pod.yaml

apiVersion: v1
kind: Pod
metadata:
  name: nginx-pod
spec:
  containers:
  - name: nginx
    image: nginx



Private Repository

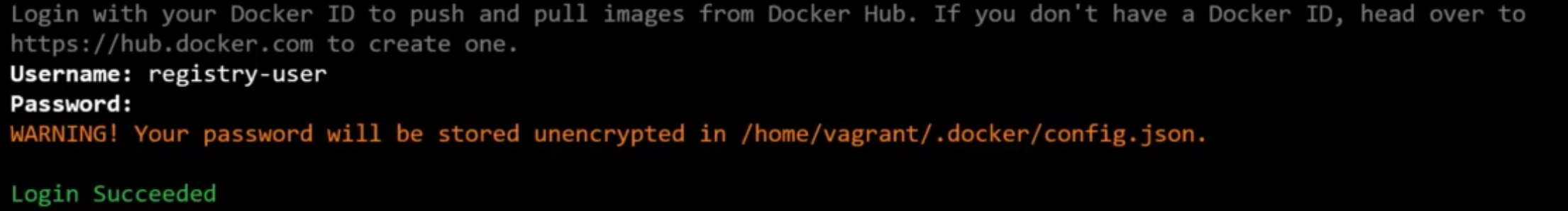

$ docker login private-registry.io



$ docker run private-registry.io/appsinternal-app



nginx-pod.yaml

apiVersion: v1
kind: Pod
metadata:
  name: nginx-pod
spec:
  containers:
  - name: nginx
    image: private-registry.io/appsinternal-app



How do you pass the credentials to the docker on time on the worker node for that we first create a secret object with the credentials in it

kubectl create secret docker-registry regcred \
  --docekr-server= private-registry.io        \
  --docker-username= registry-user            \
  --docker-password= registry-password        \
  --docker-email= registry-user@org.com       \



apiVersion: v1
kind: Pod
metadata:
  name: nginx-pod
spec:
  containers:
  - name: nginx
    image: private-registry.io/appsinternal-app
  imagePullSecrets:
  - name: regcred

[Practice Test]



ㅁ We have an application running on our cluster. Let us explore it first. What image is the application using?

$ kubect get deployment

NAME   READY   UP-TO-DATE   AVAILABLE   AGE
web    2/2     2            2           7m1s

$ kubectl describe deployment web

Name:                   web
Namespace:              default
CreationTimestamp:      Tue, 30 Mar 2021 10:58:45 +0000
Labels:                 app=web
Annotations:            deployment.kubernetes.io/revision: 1
Selector:               app=web
Replicas:               2 desired | 2 updated | 2 total | 2 available | 0 unavailable
StrategyType:           RollingUpdate
MinReadySeconds:        0
RollingUpdateStrategy:  25% max unavailable, 25% max surge
Pod Template:
  Labels:  app=web
  Containers:
   nginx:
    Image:        nginx:alpine
    Port:         <none>
    Host Port:    <none>
    Environment:  <none>
    Mounts:       <none>
  Volumes:        <none>
Conditions:
  Type           Status  Reason
  ----           ------  ------
  Available      True    MinimumReplicasAvailable
  Progressing    True    NewReplicaSetAvailable
OldReplicaSets:  <none>
NewReplicaSet:   web-bd975bd87 (2/2 replicas created)
Events:
  Type    Reason             Age    From                   Message
  ----    ------             ----   ----                   -------
  Normal  ScalingReplicaSet  6m41s  deployment-controller  Scaled up replica set web-bd975bd87 to 2

ㅁ We decided to use a modified version of the application from an internal private registry. Update the image of the deployment to use a new image from myprivateregistry.com:5000



kubectl edit deployment webapp

image: myprivateregistry.com:5000/nginx:alpine
으로 수정

ㅁ Are the new PODs created with the new images successfully running?

[NO]



ㅁ Create a secret object with the credentials required to access the registry

- Name: private-reg-cred

- Username: dock_user

- Password: dock_password

- Server: myprivateregistry.com:5000

- Email: dock_user@myprivateregistry.com

kubectl create secret docker-registry private-reg-cred \
--docker-username=dock_user \
--docker-password=dock_password \
--docker-server=myprivateregistry.com:5000 \
--docker-email=dock_user@myprivateregistry.com

ㅁ Configure the deployment to use credentials from the new secret to pull images from the private registry

kubectl edit deployment web

kubectl edit deployment web

아래 부분 수정
    spec:
      containers:
      - image: myprivateregistry.com:5000/nginx:alpine
        imagePullPolicy: IfNotPresent
        name: nginx
        resources: {}
        terminationMessagePath: /dev/termination-log
        terminationMessagePolicy: File
      dnsPolicy: ClusterFirst
      imagePullSecrets:
      - name: private-reg-cred
