AWS Load Balancer Controller (Ingress Controller) 설치

prerequisites



먼저 AWS Load Balancer Controller version set이 되어 있는지 점검

if [ ! -x ${LBC_VERSION} ]
  then
    tput setaf 2; echo '${LBC_VERSION} has been set.'
  else
    tput setaf 1;echo '${LBC_VERSION} has NOT been set.'
fi

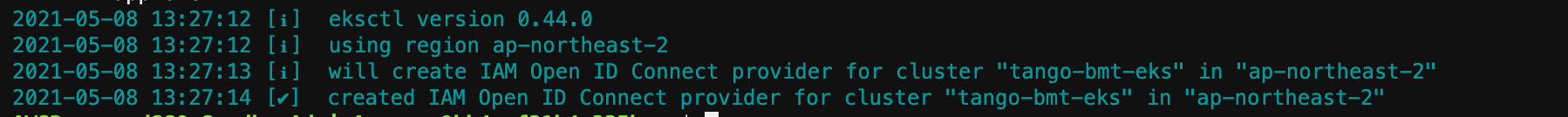

IAM OIDC Provider 생성

eksctl utils associate-iam-oidc-provider \
    --region ${AWS_REGION} \
    --cluster tango-bmt-eks \
    --approve

Create an IAM policy called

aws iam create-policy \
    --policy-name AWSLoadBalancerControllerIAMPolicy \
    --policy-document https://raw.githubusercontent.com/kubernetes-sigs/aws-load-balancer-controller/main/docs/install/iam_policy.json

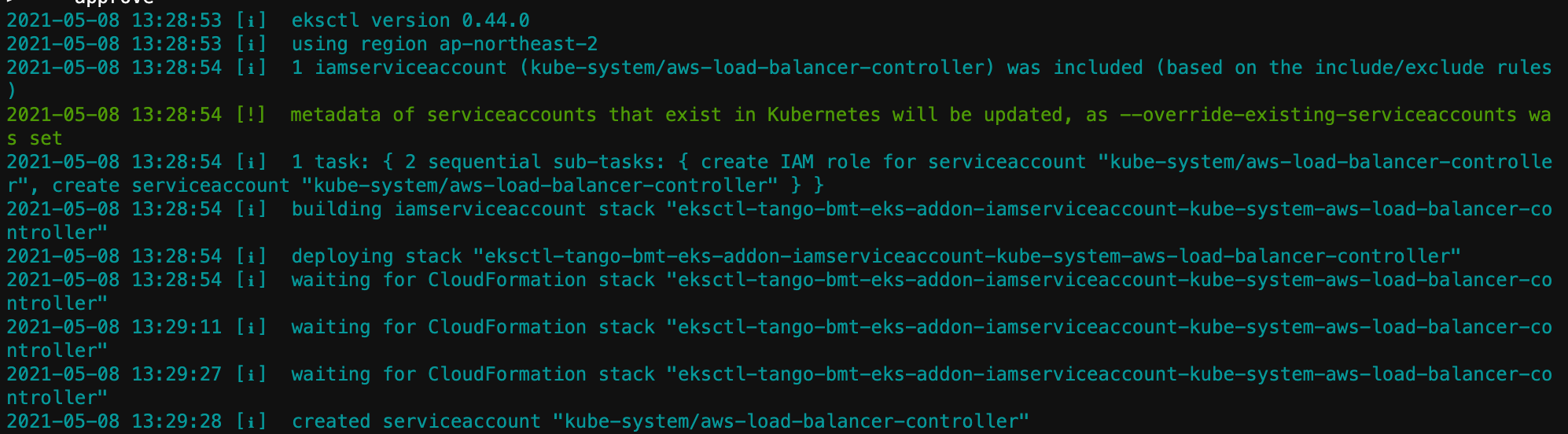

Create IAM role 과 ServiceAccount

eksctl create iamserviceaccount \
  --cluster tango-bmt-eks \
  --namespace kube-system \
  --name aws-load-balancer-controller \
  --attach-policy-arn arn:aws:iam::${ACCOUNT_ID}:policy/AWSLoadBalancerControllerIAMPolicy \
  --override-existing-serviceaccounts \
  --approve

Install the TargetGroupBinding CRDs

$ kubectl apply -k github.com/aws/eks-charts/stable/aws-load-balancer-controller/crds?ref=master
customresourcedefinition.apiextensions.k8s.io/targetgroupbindings.elbv2.k8s.aws created

$ kubectl get crd
NAME                                         CREATED AT
eniconfigs.crd.k8s.amazonaws.com             2021-05-08T12:12:51Z
securitygrouppolicies.vpcresources.k8s.aws   2021-05-08T12:12:54Z
targetgroupbindings.elbv2.k8s.aws            2021-05-08T13:30:20Z

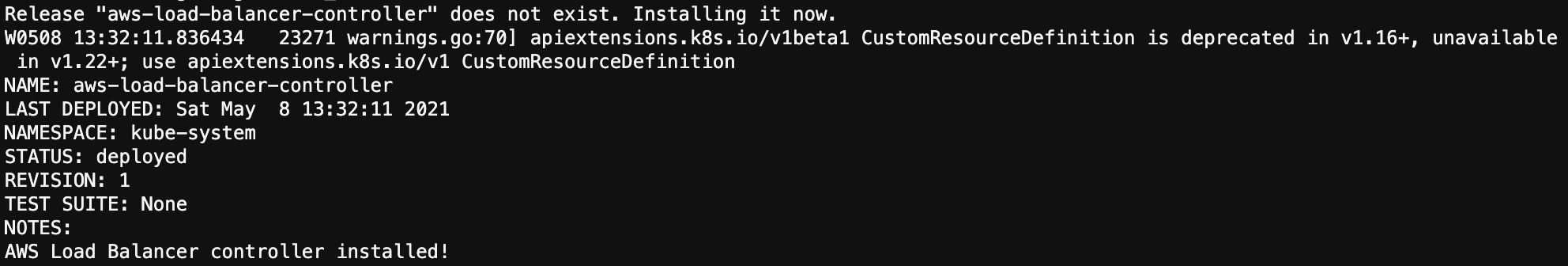

Deploy the Helm chart

helm repo add eks https://aws.github.io/eks-charts

helm upgrade -i aws-load-balancer-controller \
    eks/aws-load-balancer-controller \
    -n kube-system \
    --set clusterName=bmt-tango-eks \
    --set serviceAccount.create=false \
    --set serviceAccount.name=aws-load-balancer-controller \
    --set image.tag="${LBC_VERSION}"

kubectl -n kube-system rollout status deployment aws-load-balancer-controller
