[AWS Certificate]-DynamoDB Streams

DynamoDB Streams



• 24 Hours time-ordered log of all table-write activity



• React to changes to DynamoDB tables in real time

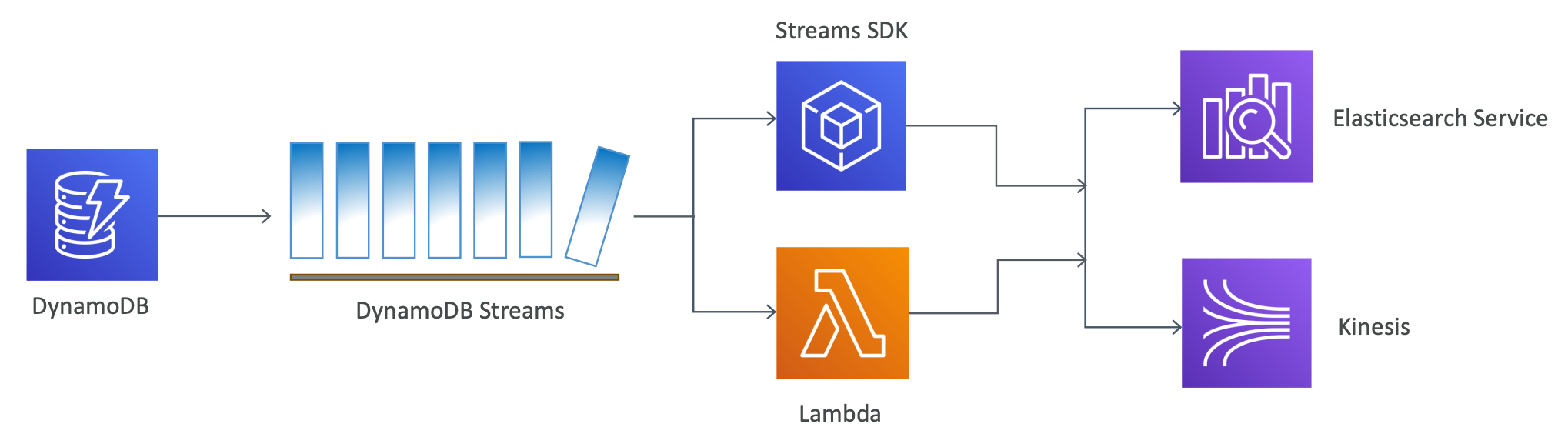

• Can be read by AWS Lambda, EC2, ES, Kinesis ...
• Use cases: Replication, Archival, Notifications, Log processing
• DynamoDB Streams are organized into shards
• Records are not retroactively populated in a stream after enabling it
• Simply enable streams from DynamoDB console

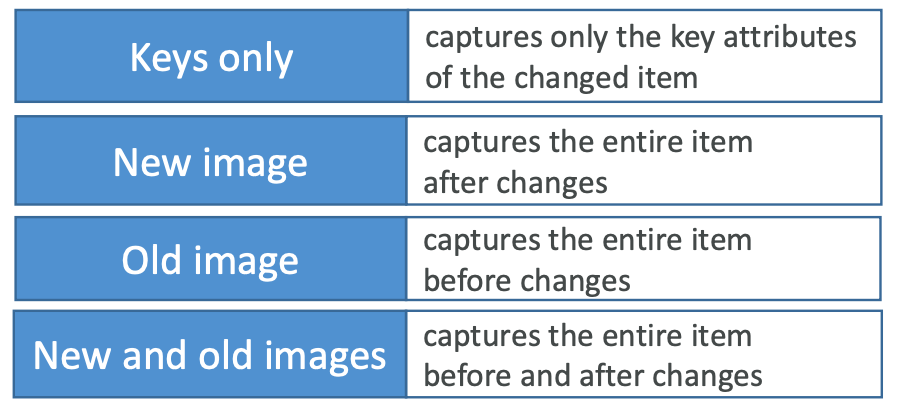

• Four supported views:

https://docs.aws.amazon.com/amazondynamodb/latest/developerguide/Streams.html

Change Data Capture for DynamoDB Streams - Amazon DynamoDB



---

Time to Live (TTL)



• Allows you to tell DynamoDB when to delete an item from the table
• Simply designate an item attribute as a TTL attribute

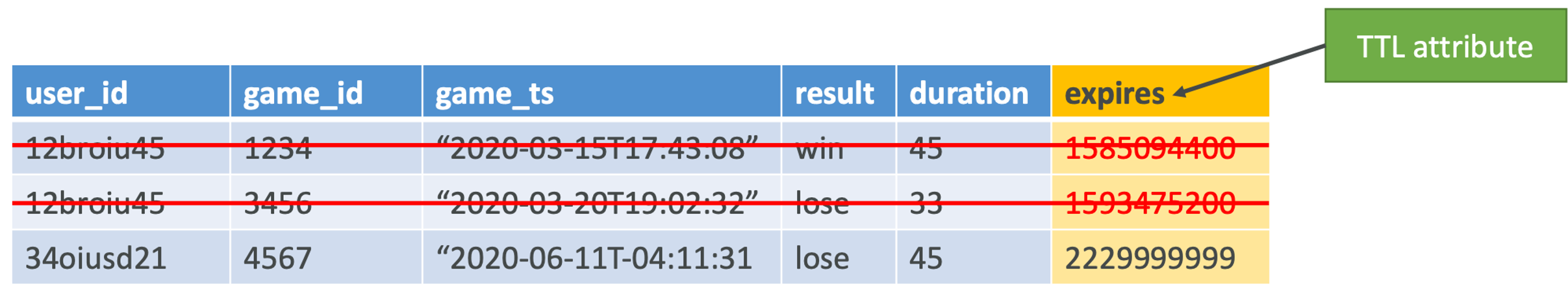

• TTL attribute should contain the expiry timestamp for the item (EPOCH or UNIX timestamp)
• Items get marked for deletion on expiry
• Expired items get removed from the table and indexes automatically within about 48 hrs
• Expired items can show up in the API responses until they get deleted
• Application should use filter operations to exclude items marked for deletion
• Deleted items appear in DynamoDB streams (if streams are enabled)

---

Demo

---



TTL Use Cases



• Data archival to another table (using DynamoDB streams)
• Separating hot and cold data in time-series data (using DynamoDB streams)

---

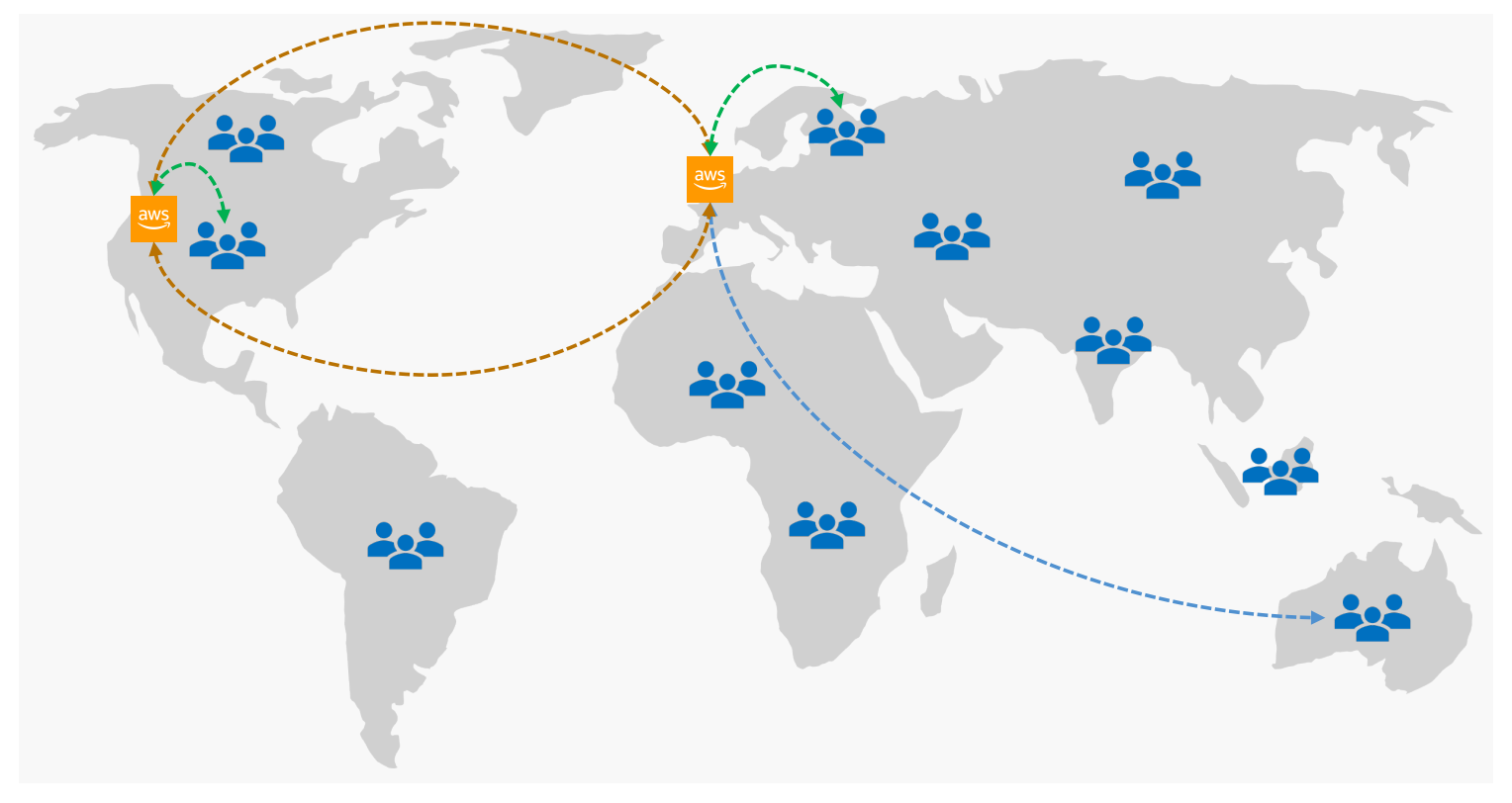

DynamoDB Global Tables

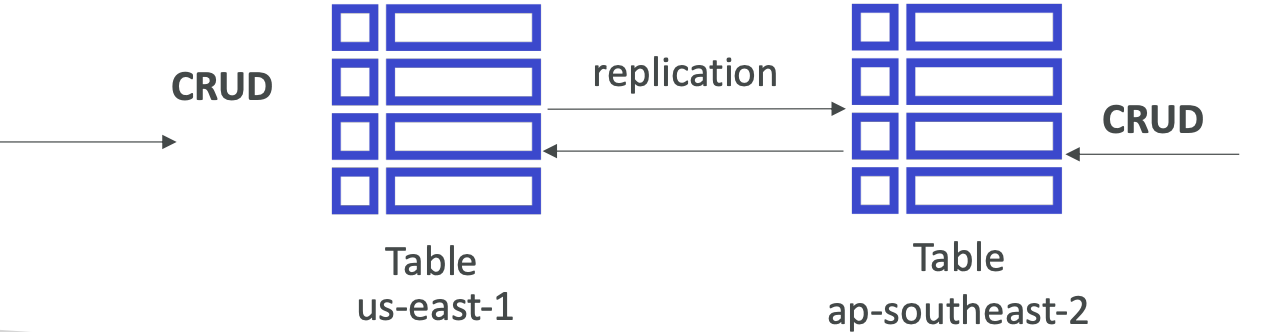

• Automatic, Multi-Master, Active-Active, Cross-region replication
• Useful for low latency, DR purposes
• Near real-time replication ( < 1 second replication lag)
• Eventual consistency for cross-region reads
• Strong consistency for same region reads
• "Last Writer Wins" approach for conflict resolution
• Transactions are ACID-compliant only in the region where write occurs originally
• To enable global tables for a table, the table must be empty across regions
• Only one replica per region
• Must enable DynamoDB Streams with New and Old Images
• Must have the same table name and primary keys across regions
• Recommended to use identical settings for table and indexes across regions

---



Why Global Tables







---

Demo

---

Fine-Grained access control in DynamoDB

• Can use IAM to control access to DynamoDB resources
• DynamoDB does not support tag-based conditions
• Can use condition keys in you IAM policy for fine-grained access control
  • Can restrict access to certain items / attributes based on user identity (in a table or a secondary index)
  • Example - allow users to access only the items that belong to them, based on certain primary key values



---

Find-Grained Access Control for DynamoDB



• ForAllValues:StringEquals - compares the requested attribute values with those in the table



• dynamodb:LeadingKeys - represents partition key. E.g. access will be allowed only if user's user_id matches the primary key value on the table



• dynamodb:Attributes - to limit access to specific attributes



https://docs.aws.amazon.com/amazondynamodb/latest/developerguide/specifying-conditions.html

Using IAM Policy Conditions for Fine-Grained Access Control - Amazon DynamoDB

---

DynamoDB Web Identity Federation

• Also called as DynamoDB federated identities
• For authentication and authorization of app users
• No need to create individual IAM users
• Login with an identity provider (like Google/Facebook/Amazon) and get a web identity token
• Use Cognito to exchange the web identity token with temporary IAM credentials (STS token)
  • or you can also call STS directly
• Use the temporary credentials to access DynamoDB (as per the role associated with the credentials
• Can use fine-grained access control (with condition keys)



---

CloudWatch Contributor Insight



• Contributor Insights shows you the most accessed and throttled items in DynamoDB
• Also helps you analyze time-series data
• Supported for dynamoDB and CloudWatch Logs
• Identify outliers/contributors impacting system and application performance
• Find the heaviest traffic patterns
• Analyze the top system processes
• Displayed on CloudWatch dashboard
• Integrated with CloudWatch alarms
