Why database migration? (Use cases)



• Move from legacy to cloud
• Switch the database solution
• Replicate databases across regions
• Replicate to streaming platforms
• In place DB upgrades
• Archive data to S3

• Migration Scenarios:
  • On-premise --> AWS Cloud
  • Relational --> Non-relational
  • DBs hosted on EC2 --> Nanaged AWS Services

---

Migration tools

• Native tools (e.g. mysqldump)
• SCT (Schema Conversion Tool)
• AWS DMS (Database Migration Service)
• Migration Playbooks (migration templates + best practices)



---

Migration process

---

Migration process flow



---

DMS Sources and Targets

---

DMS - Database Migration Service

• Quickly and securely migrate databases to AWS cloud, resilient, self healing
• The source database remains available during the migration
• Minimal to zero-downtime
• Costs as low as $3 / TB
• Supports homogeneous and heterogeneous migrations
• Continuous data replication using CDC (change data capture)



---

DMS Architecture

• Endpoints include DB connection and credentials information
• Replication instance is an EC2 instance running in a VPC, can be Multi-AZ
• Replication task specifies actual data talbes to migrate and data transformation rules

---

DMS - Database Migration Service



• DMS can create target tables / primary keys if they don't exist on the target
• Tables/keys can also be created manually
• Creates only those objects required that are required for efficient migration (e.g. primary keys / unique indexes etc.) - This is called as Basic Schema Copy
• Remaining DB elements/schema can be migrated using other tools (e.g. secondary indexes, FK constraints, or data defaults)
  • e.g. use SCT or native schema export tools

---

SCT - AWS Schema Conversion Tool

• Converts DB/DW schema from source to target (including procedures / views / secondary indexes / FK and constraints)
• Mainly for heterogeneous DB migrations and DW migrations
• For homogeneous migrations, can use it for migration assessment
• Can be installed on EC2 or locally on your computer (closer to source DB)
• Application conversion - can convert SQL statements embedded in the application code
• Script conversion - can convert ETL scripts (Oracle /Microsoft / Teradata scripts --> Aurora / Redshift scripts)
• Can optimize schemas in Redshift (recommends distribution and sort keys, different from native Redshift advisor)

---

SCT - AWS Schema Conversion Tool

• Provides assessment report
  • Granular report showing which objects can be converted automatically and which need manual intervention (with color codes)
  • Can be used to create a business case for migration
  • Identifies issues / limitations / actions for schema conversion
• For objects that cannot be created manually, SCT provides guidance to help you create the equivalent schema manually



---

Workload Qualification Framework (WQF)

• Standalone app that is included with SCT
• For workload assessment
• Qualifies OLTP workloads based on
  • Ease / complexity of migration
  • Extimated time / effort required
• Recommends migration strategy and tools
• Integrated with SCT and DMS
• Just provide DB connection strings and WQF can generate the assessment reports
• Available as EC2 AMI

---

DMS tasks (replication tasks)



• Lets you specify migration options
  • Table mapping (transformation rules)
  • Filters (to migrate data selectively)
  • Migration type - full load, CDC, or both



• Supports data validation
• Monitoring options
  • tasks status
  • task's control table
• Allows reloading table data (in case of errors)

---

DMS tasks assessment reports



• For pre-migration assessment (optional, recommended)
• To run an assessment, a task must be in a Stopped state
• Lets you know potential issues that might occur during a given migration
• Includes JSON output containing summary and details of unsupported data types















---

DMS migration types



---

DMS - Good things to know



• Recommended to create only the primary keys before full load
• Secondary keys and FKs should be created only after full load is complete
• In full load, multiple tables are loaded in parallel and this can create issues if you have FKs (hence create them later)
• Secondary keys can slow down the full load operation (hence create them later)
• Enable Multi-AZ for ongoing replication (for high availability and failover support)
• DMS can read/write from/to encrypted DBs





---

Migrating Large Tables



• Break the migration into multiple tasks
• Use row filtering on a key or partition key to create multiple tasks
• Example - if you have integer primary key from 1 to 8,000,000
  • Create 8 tasks using row filtering to migrate 1,000,000 records each
• Example - if you have a date field as primary key
  • Partition the data by month using row filtering
  • Use full load tasks to migrate data of previous months
  • Use full load + CDC to migrate current month data

---

DMS Migrating LOBs / CLOBs



• LOB = Large Binary Object
• CLOB = Character LArge Object
• DMS migrates LOB data in two phases
  • create a new row in the target table and populates all data except the LOB data
  • updates the row with the LOB data
• LOB options
  • Don't include LOB columns - LOB data is ignored
  • Full LOB mode - migrates all LOB data, piecewise in chunks (you provide LOB chunk size)
  • Limited LOB mode - truncate each LOB to Max LOB size (is faster)

---

Best practices for handling LOBs with DMS



• Full LOB mode performance is slowest, but data is not truncated
• For LOBs < few MBs
  • Use Limited LOB mode with Max LOB size = largest LOB size in your DB
  • Allocate enough memory to the replication instance
• For LOBs > few MBs
  • Create a separate DMS task with Full LOB mode
  • Ideally, separate task on a new replication instance
  • LOB chunk size should allow DMS to capture most LOBs in as few chunks as possible
• Inline LOB mode
  • Combines the advantages of both modes (full LOB and limited LOB mode)
  • Migrate without truncating the data or slowing the task's performance
  • You specify InlineLobMaxSize (Full LOB mode must be set to true)
  • Small LOBs are transferred inline, large LOBs by using source table lookup
  • Supported only during full load (not during CDC)

---

SCT Extractors (=DW migration)

• SCT extractors are migration agents installed locally (or on EC2)



• Extracts data from the source DW in parallel
• Supports encryption
• Data is optimized for Redshift and stored in local files
• Files are then loaded into S3 (using N/W or Snowball Edge)
• Use the COPY command to load data from S3 into Redshift
• If you are using Oracle or SQL Server, you can use DMS to keep your DBs in sync with Redshift / or target engine

---

DW migration with SCT

---

Snowball Edge vs Snowmobile

• Both can be used for data migration

---

Migration playbooks

• Series of step-by-step guides published by AWS
• Provide best practices and blueprints for different heterogeneous migrations
• https://aws.amazon.com/dms/resources/

---

Service Substitutions

• Service Substitutions are highlighted in playbooks
• SQL server - DB mail to send email based on certain events
  • This feature is not available in open source engines
  • We can use Lambda functions through Aurora MySQL along with SNS to emulate the email functionality
• Similar substitutions are possible with queues, file management etc.
• Can use AWS glue to manage ETL pipelines
• SCT can convert your Teradata / Oracle scripts and move them into AWS Glue by auto-generating necessary python code

---

Monitoring DMS

• Can monitor task progress by:
  • checking the task status
  • using the tasks's control table
  • or with CloudWatch
• DMS Task Logs and service metrics / statistics are provided by CloudWatch
• Task monitoring tab shows CloudWatch metrics
• Table statistics tab shows statistics for each table
• Can subscribe to event notifications (uses SNS)
• API calls are logged in CloudTrail

---

DMS Task Logs

• Certain DMS issues / warnings / error messages appear only in the task log
  • e.g. data truncation issues or row rejections due to FK violations are only written to the task log
• Must enable CloudWatch logs while creating replication task

---

DMS Validation

• DMS can validate the migrated data for RDBMS migrations
• Supports partial validation of LOBs
• You enable validation in the DMS task settings
• Tracks the progress of the migration and incrementally validates new data as it is written to the target (by comparing source and target data)
• Table must have a primary key or unique index for validation to work
• Requires additional time to complete
• Validation is recommended during CDC. (but can also be done during full load)
• SCT extractors do not support validation. Only DMS does.



---

Tabls statistics

• Table statistics tab shows the table state (performance statistics) for each table that's being migrated
• Use the command
  • describe-table-statistics to receive the data validation report in JSON format


---

Task Statistics



• If you enable data validation, DMS provides table-level statistics for the given task
• Indicates the validation state for each table
• You can revalidate tables from Table Statistics tab, if desired
• Validation errors and diagnostic info is written to a table named awsdms_validation_failures_v1 at the target endpoint
• Example - to troubleshoot validation errors, run this query:

SELECT * FROM awsdms_validation_failures_v1 WHERE TASK_NAME = 'C89TDNZRYUKH56DR6RGNM'

---

DMS Security - IAM and Encryption



• Use IAM for managing DMS access and resource permissions
• Can encrypt DMS endpoitns using SSL ceritficates
  • Can assign a certificate to an endpoint (via DMS console or API)
  • Each endpoint may need different SSL configuration depending on the DB engine
  • Ex. Redshift already uses an SSL connection, does not require DMS SSL
  • Oracle SSL requires you to upload Oracle wallet instead of certificate (.pem) files
• Encryption at rest(for storage) uses KMS keys

---

DMS Security - Networking

• DMS replication instance is always created within a VPC
• The DB endpoints must include NACLs / SG config to allow incoming access from the replication instance
• Network configuration for DMS
  • Single VPC
  • Two VPC
  • On-premises Network to VPC (using DX / VPN / Internet)
  • RDS outside VPC (on EC2) to a DB inside VPC (via ClassicLink)

---

DMS Networking - Single VPC

• Simplest network configuration - all components within the same VPC



---

DMS Networking - Two VPCs

• Source and target endpoints in different VPCs
• Create replication instance in one of the VPCs and use VPC peering
• Generally, you'd get better performance by placing primary DMS replication instance is in the same AZ as the target DB

---

DMS Networking - On-premises to VPC

• Can use either DX or VPN
• Use Internet Gateway if DX or VPN cannot be used
• Using IG = public replication instance in a VPC

---

DMS Networking - RDS outside VPC to VPC

• Use ClassicLink with a proxy server
• Replication instance in the VPC cannot use ClassicLink directly (hence the need for proxy)
• Port forwarding on the proxy server allows communication between source and target

---

DMS Pricing

• You only pay for
  • replication instances
  • additional log storage
  • data transfer

---

DMS general best practices

• Disable backups and transaction logs during migration
• Carry out validation during CDC (instead of during full-load)
• Use multi-AZ deployment for replication instances
• Provision appropriate instance resources
• https://docs.aws.amazon.com/dms/latest/userguide/CHAP_BestPractices.html

Best practices for AWS Database Migration Service - AWS Database Migration Service



---

Minimizing downtime due to migration



• Solution architectures for migration with DMS
  • Fallback
  • Roll forward / Fall forward
  • Dynamic connections
  • Dual write
• Minimal downtime / near-zero downtime / zero downtime
• Zero downtime => Full load + CDC

---

Basic fallback approach

---

Roll f orward / Fall forward approach

---

Roll-forward with Dynamic Connection

• Application write to both old and new databases. Each application can cutover separately



---

Dual write approach

---

More migration architectures



https://aws.amazon.com/blogs/database/rolling-back-from-a-migration-with-aws-dms/

Rolling back from a migration with AWS DMS | Amazon Web Services



---

Migrating large databases

• Use multiphase migration
• Copy static tables first (before migrating active tables)
• Cleanup old unwanted data to reduce DB size
• Alternatively, use Snowball Edge to move data to S3 and then migrate using DMS

---

Migrating to MySQL / MariaDB on RDS

• From MySQL / MariaDB (on-premises / S3 / EC2)
  • Small to medium DBs - use mysqldump / mysqlimport utilities (some downtime)
  • One time - Restore from backup (or data dump) stored on S3 (some downtime)
  • Ongoing - Configure binlog replication from existing source (minimal downtime)
• From MySQL / MariaDB on RDS
  • One time / Ongoing - Promote a read replica to be a standalone instance
• From any DB
  • One time / Ongoing. Use DMS (minimal downtime)



---

Migrating to PostgreSQL on RDS



• From PostgreSQL (on-premises / EC2)



  • One time - use pg_dump / pg_restore (some downtime)
• From CSV data stored on S3
  • Use aws_s3 PostgreSQL extension and import data using the aws_s3.table_import_from_s3 function (some downtime)
• From PostgreSQL on RDS (large DBs)
  • Use pg_transport extension (streams data, is extremely fast, minimal downtime)
• From any DB
  • One time / Ongoing - Use DMS (minimal downtime)

---

Migrating to Oracle on RDS

• For small DBs - use Oracle SQL Developer tool (Freeware)
  • Perform Database Copy with Oracle SQL Developer
  • Supports Oracle and MySQL as source
• For large DBs - use Oracle Data Pump
  • Can export and import between Oracle DBs (on-prem / EC2 / RDS)
  • Can use S3 to transfer the dump file (use option group with option S3_INTEGRATION)
  • Can also transfer using creating a database link between source and target
• From any DB
  • One time / Ongoing - Use DMS (minimal downtime)

---

Migrating to SQL Server on RDS

• From SQL Server (on-premises / EC2)
  • Use native backup and restore (.bak backup files stored on S3)
  • Supports encryption and compression
  • Or use SQL Server Management Studio
• Microsoft SQL Server MAnagement Studio (freeware, has three options)
  • Generate and Publish Scripts wizard - creates a script with schema and/or data
  • Import and Export wizard
  • Bulk copy
• From SQL Server (on RDS)
  • Restore from a snapshot
  • Or use native backup and restore feature
  • Or use SQL Server Management Studio
• From any DB
  • One time / Ongoing - USe DMS (minimal downtime)

---

Homogenous Migration to Aurora



• MySQL 5.6 compliant DBs (MySQL / MariaDB / Prcona)
• Homogenous Migration with Downtime
  • REstore from RDS snapshot
  • Full load using native DB tools
  • Full load using DMS (migrate shcema with native tools first)
• Homogenous Migration with Near-Zero Downtime (minimal downtime)
  • Restore from RDS snapshot + MySQL binlog replication
  • Full load using native tools + MySQL binlog replication
  • Full load + CDC using DMS
  • Create an Aurora replica from MySQL / PostgreSQL on RDS and promote it to a standalone DB

---

Heterogeneous Migration to Aurora



• Schema migration - use SCT
• Data Migration - use DMS
• For near-zero downtime - use continuous replication using DMS (Full load + CDC)











---

Migrating to Aurora Serverless



• Can migrate between Aurora provisioned cluster and Aurora Serverless cluster
• Can migrate from RDS to Aurora to Aurora Serverless (not directly)



---

Strategies for Migration to Aurora



• MySQL / PostgreSQL on RDS to Aurora (Homogeneous)
  • Restore from a snapshot to Aurora (manual or automated snapshot)
  • Replicate to an Aurora read replica and then promote the replica to a standalone DB
  • Use DMS
• MySQL on EC2 or MySQL on-premise to Aurora (Homogeneous)
  • Restore from backup files stored on S3
  • Restore from text files (CSV / XML) stored in S#
  • Restore using mysqldump utility
  • Use DMS
• PostgreSQL on EC2 or PostgreSQL on-premise to Aurora (Homogeneous)
  • Migrate to PostgreSQL to RDS and them migrate to Aurora
  • Use DMS
• MariaDB / Oracle / SQL Server to Aurora (Heterogeneous)
  • Use DMS and SCT

---

Additional White papaer

https://d1.awsstatic.com/whitepapers/RDS/Migrating%20your%20databases%20to%20Amazon%20Aurora.pdf

---

Migrating Redis workloads to ElastiCache



• Two approaches
  • Offline migration (using backup)
  • Oneline migration (migrate data from endpoint)

---

Offline migration to ElastiCache for Redis



• Create a Redis backup (.RDB file)
• Create a S3 bucket
• Upload the backup to S3
• Create the target ElastiCache cluster and choose the option to seed the RDB file from S3 location
• ElastiCache should have read access to the RDB file

---

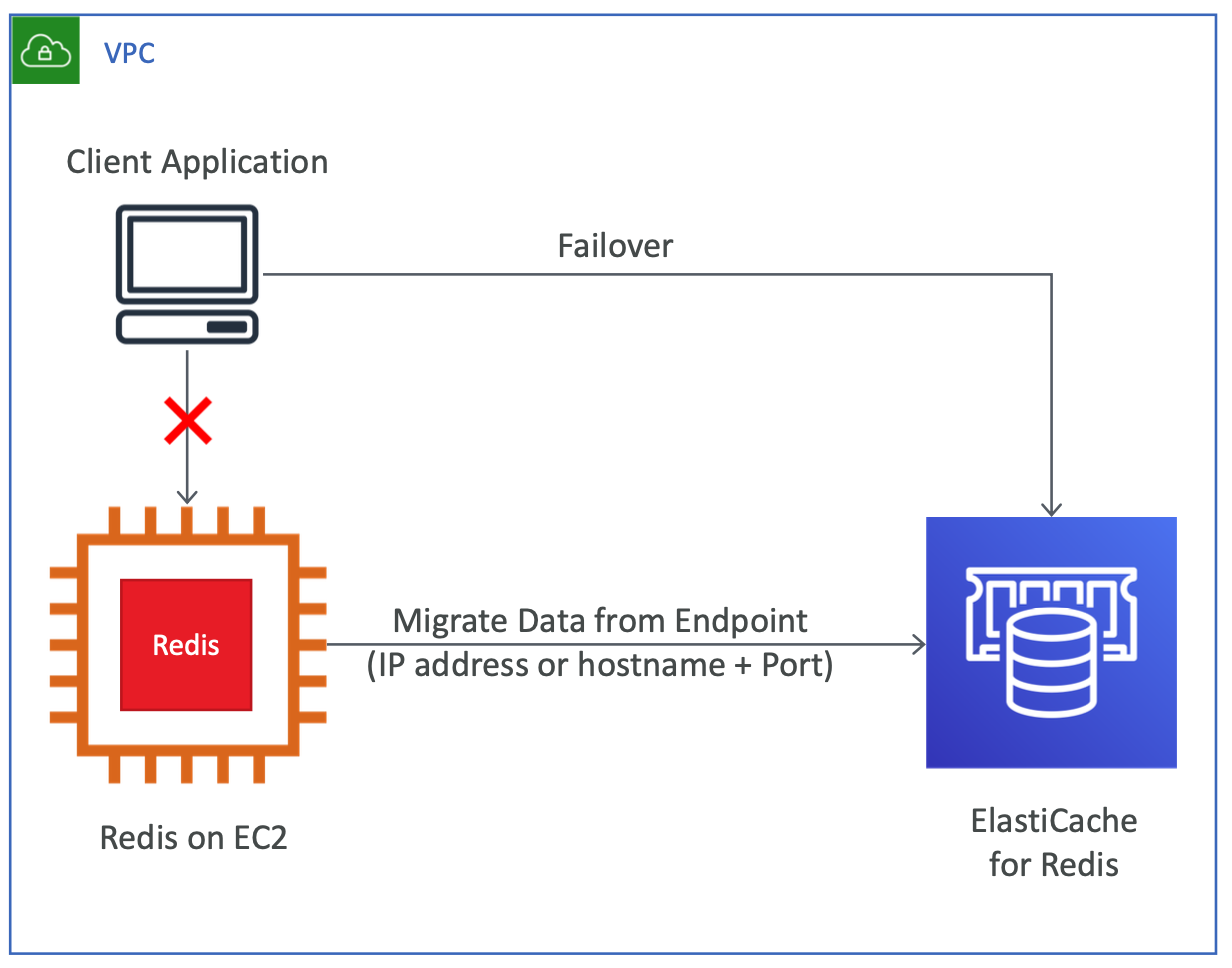

Online migration to ElastiCache for Redis



• Real-time data migration

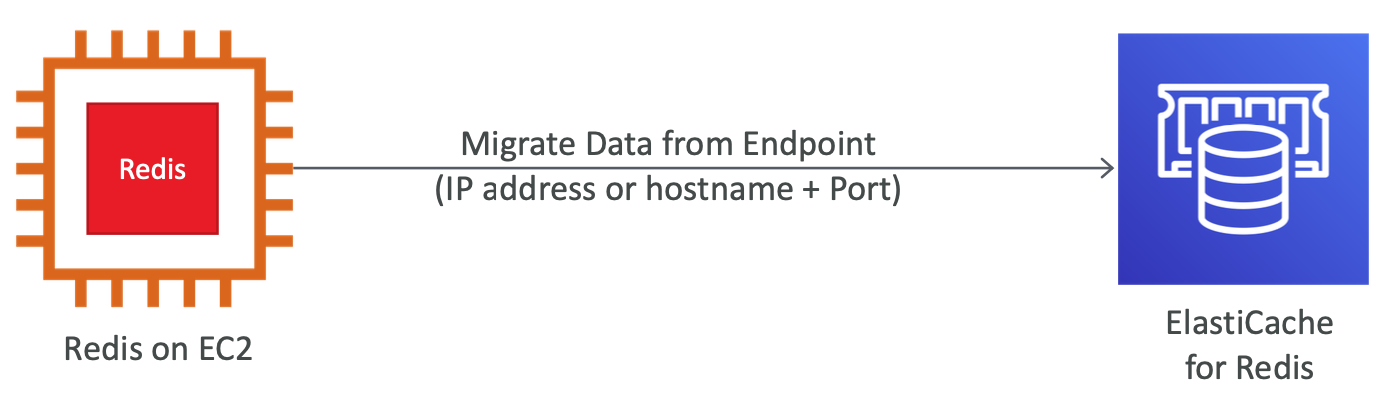

• Migrate self-hosted Redis on EC2 to ElastiCache
• Create the target Redis cluster (or choose an existing one)
• Under Actions, choose Migrate Data from Endpoint
• Monitor using the Events section on the ElastiCache console
• Failover to the new DB
• You can decide when to failover

---

Good to know - Online Redis migration



Source cluster	Target cluster
must have Redis AUTH disabled	must have Cluster-mode disabled
must have "protected-mode" disable	must have Multi-AZ enabled
"bind" config if present should allow requests from ElastiCache	must have encryption disabled
	must have sufficient memory

---

Migrating to DocumentDB

• Four approaches
  • Offline migration
  • Online migration
  • Hybrid Approach
  • Dual write approach

---

Offline migration to DocumentDB

• Simplest and fastes, but with the longest downtime
• Non-critical / non-production workloads
• Homogeneous - mongodump / mongorestore (BSON)
• Homo / Heterogeneous - mongoexport / mongoimport (JSON / CSV)
• Use DocumentDB index tool to export/import indexes

---

Online migration to DocumentDB



• Medium complexity, slowest, and with minimal downtime
• For production workloads
• Uses DMS
• Migrate indexes using DocumentDB index tool
• DMS does not migrate indexes

---

Hybrid Approach to DocumentDB Migration



• Mix of offline and online migration
• Most complex, faster than online, and with minimal downtime
• For production workloads
  • When DB size is large
  • or if you don't have enough network bandwidth
• Phase 1
  • Export with mongodump
  • Transfer it to AWS if on-premise(Direct Connect / Snowball)
  • Migrate indexes using DocumentDB index tool
  • Restore to DocumentDB
• Phase 2
  • Use DMS in CDC mode

---

Dual write approach for DocumentDB Migration



• Typically used for heterogeneous migrations
• Example - RDBMS to DocumentDB
• Create indexes manually (in case of heterogeneous migration)

---

Streaming use cases for DMS

• Can stream data from source to target (=ongoing replication)
  • Redshift - Stream from OLTP to redshift for analytics
  • S3 data lakes - hydrate data lakes
  • Stream to Kinesis data streams
  • Stream to ElasticSearch Service
• Can use fan-out architecture
• Can also use fan-in architecture

---

Streaming use cases for DMS



---

Streaming use cases for DMS
