[AWS Certificate]-AWS Database Encryption, Security and Auditing

AWS KMS (Key Management Service)



• Anytime you hear "encryption" for an AWS Service, it's most likely KMS
• Easy way to control access to your data, AWS manages keys for us
• Fully integrated with IAM for authorization
• Seamlessly integrated into:
  • Amazon EBS: encrypt volumes
  • Amazon S3: Server side encryption of objects
  • Amazon Redshift: encyrption of data
  • Amazon RDS: encryption of data
  • Amazon SSM: parameter store
  • Etc...
• But you can also use the CLI / SDK

---

Copying Snapshots across regions



---

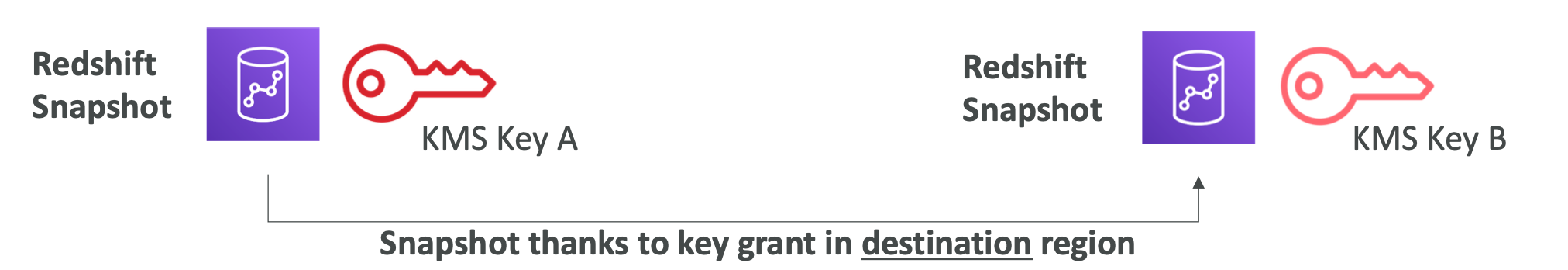

Cross Region Snapshots for Redshift Snapshot Copy Grant

• https://docs.aws.amazon.com/redshift/latest/mgmt/working-with-snapshots.html

Amazon Redshift snapshots - Amazon Redshift

• In the destination AWS Region, create a snapshot copy grant by doing the following:
  • Create a KMS key in the destination region
  • Specify a name for the snapshot copy grant. This name must be unique in that AWS Region for your AWS Account.
  • Specify the AWS KMS key ID for which you are creating the grant
• In the source AWS Region, enable copying of snapshots and specify the name of the snapshot copy grant that you created in the destination AWS Region.

---

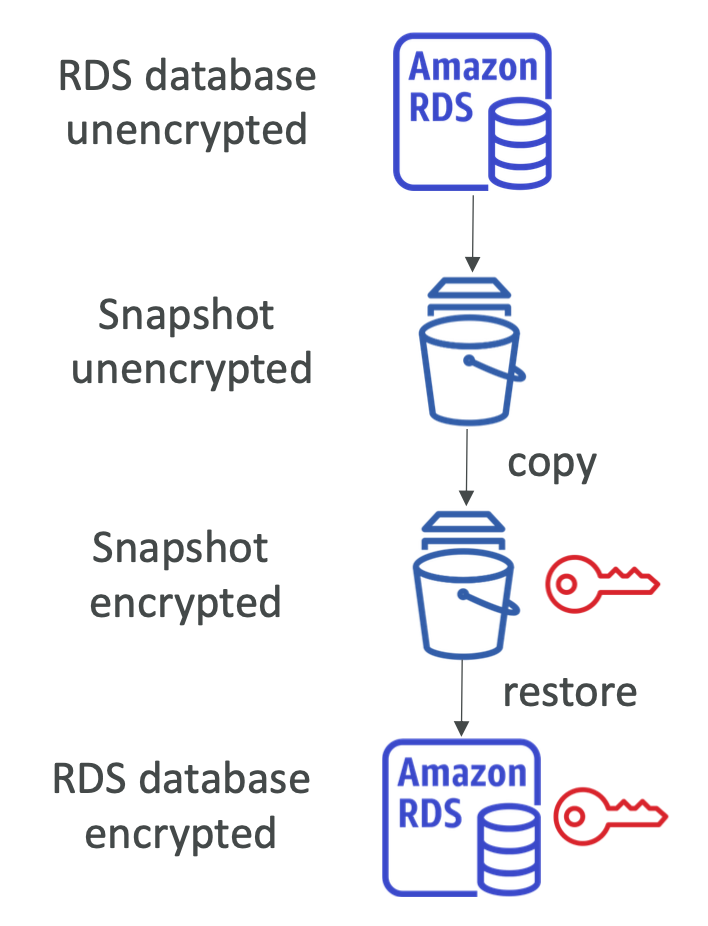

Encrypting an un-encrypted RDS Database



1. Take a snapshot of the RDS database

   - The snapshot will be un-encrypted



2. Create an encrypted copy of the snapshot

  - Using the KMS key of your choosing



3. Restore a database from the encrypted snapshot

  - The database will be encrypted!











---

Database Logging - RDS



• Engine log files available (Oracle, MSSQL, PostgreSQL, MySQL, MariaDB)
  • List log files: aws rds describe-db-log-files
  • Download log files: aws rds download-db-log-file-portion
• Normal log retention in RDS up to 7 days (configurable per DB)
• Logs can be published into CloudWatch Logs
  • you can perform real-time analysis of the log data
  • store the data in highly durable storage (retention period configurable / infinite)
  • From CloudWatch Logs you can export to S3
  • Must create a custom parameter group (can't modify default)

---

Database Logging - Aurora



• Engine log files available (PostgreSQL, MySQL)
  • List log files: aws rds describe-db-log-files
  • Download log files: aws rds download-db-log-file-portion
• Normal log retention in RDS up to 7 days (configurable per DB)
• Logs can be published into CloudWatch Logs
  • you can perform real-time analysis of the log data
  • store the data in highly durable storage (retention priod configurable / infinite)
  • From CloudWatch Logs you can export to S3
  • Not avalable for transaction logs

---

Database Logging - Redshift



• Amazon Redshift logs information about connections and user activities in your database ( for troubleshooting + audit)
  • Connection log - logs authentication attempts, and connections and disconnections.
  • User log - logs information about changes to database user definitions
  • User activity log - logs each query before it is run on the database.
• The logs are stored in Amazon S3 buckets (must be enabled)
  • Set lifecycle policies accordingly
  • Ensure S3 bucket policies allows for Redshift to write to the bucket

---

Database Logging - DynamoDB



• All API calls to DynamoDB are logged into CloudTrail
• From CloudTrail you can send to:
  • CloudWatch Logs
  • Amazon S3 buckets
• There are no "log files" in DynamoDB, it's a proprietary. technology

---

Database Logging - DocumentDB



• You can audit DocumentDB Events (must opt in)
• Examples of logged events
  • successful and failed authentication attempts
  • dropping a collection in a database
  • creating an index
  • Data Definition Language(DDL)
• Logs are sent into CloudWatch Logs
• To opt in, set the audit_logs parameter to enabled (parameter group)

---

Database Logging - Other



• ElastiCache: no logs to access yet
• Neptune:
  • publicsh audit log data to a log group in Amazon CloudWatch Logs
  • Use the neptune_enable_audit_log parameter to enable (1) or disable (0)
• QLDB:
  • No logs are accessible
• DMS:
  • Can set task-logging level to LOGGER_SEVERITY_DETAILED_DEBUG (most detailed log)

---

AWS Secrets Manager



• Newer service, meant for storing secrets
• Capability to force rotation of secrets every X days
• Uses a Lambda function
  • Generated by AWS for integrated DB types (Amazon RDS, Redshift, DocumentDB)
  • For other secrets, you need to code a Lambda function to generate the next secret
• Secrets are encrypted using KMS
• Mostly meant for RDS integration

---

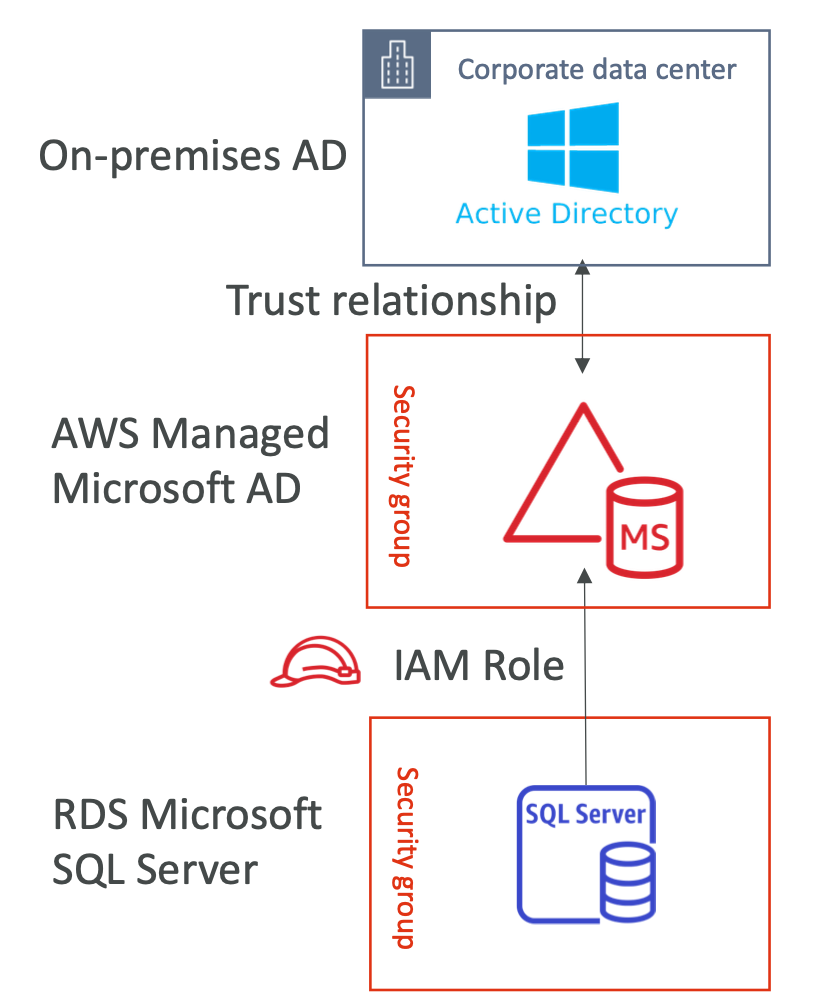

Active Directory with RDS SQL Server

• Use AWS Managed Microsoft AD
    - If you need to join your on-premiese AD, create a trust relationship
• Create an IAM role with AmazonRDSDirectoryServiceAccess to access AWS Managed Microsoft AD
• Create and configure users and groups in the AWS managed Microsoft AD Directory
• Create a new or modify an existing Amazon RDS instance with
    - A reference to the IAM role that has access to the AD
    - A referenct to the AWS managed Microsoft AD
    - No need to stop the DB if you are modifying it
• Ensure security groups alloow communication between RDS and Microsoft AD
• Log in to the DB using the Master User Credentials and create logins
