Authentication

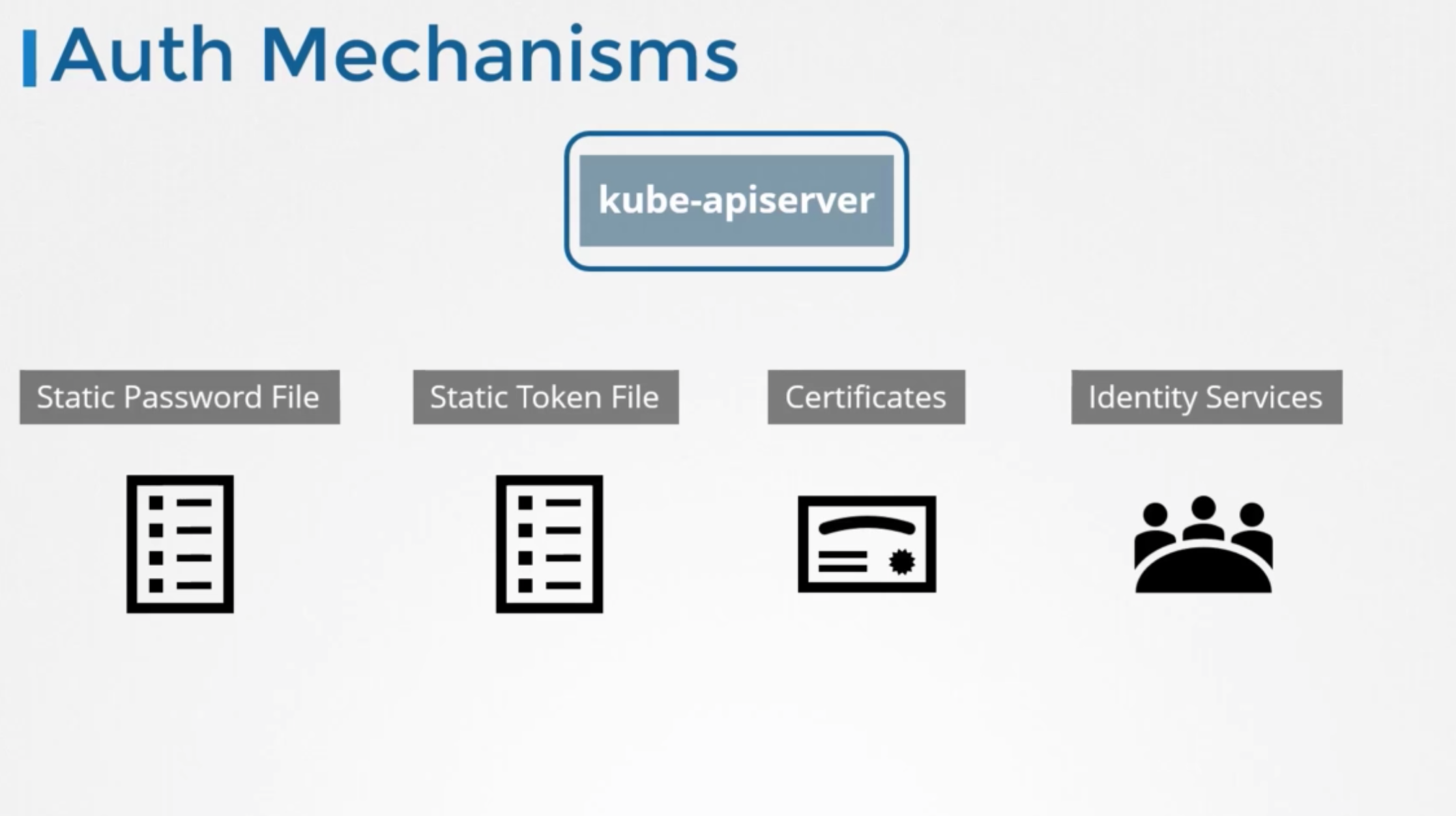

Focusing on securing access to the communicties cluster with authentication mechanisms

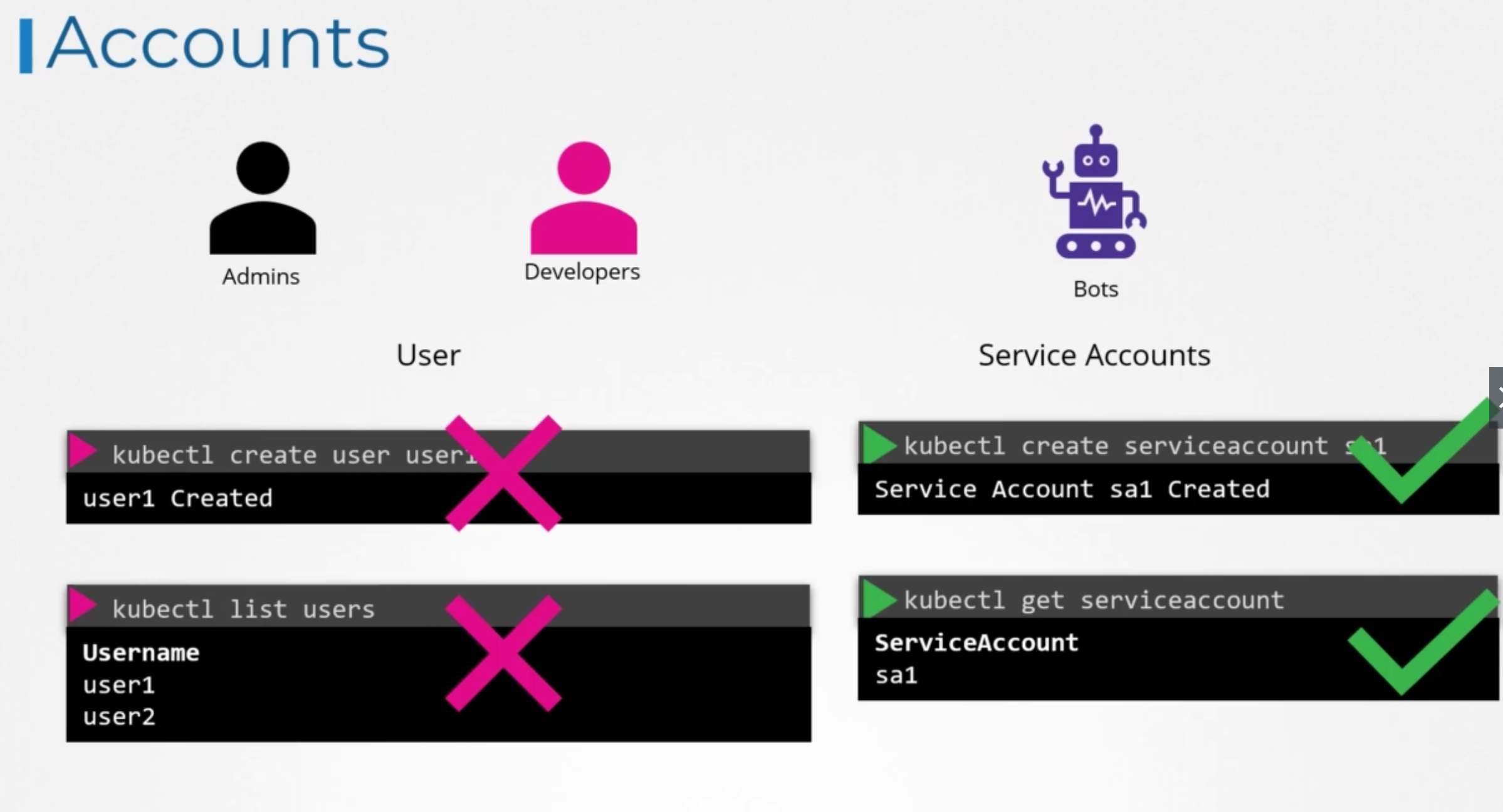

kubectl create serviceaccount sa1

kubectl get serviceaccount

kube-apiserver.service

ExecStart=/usr/local/bin/kube-apiserver \\
  --advertise-address=${INTERNAL_IP} \\
  --allow-privileged=true \\
  --apiserver-count=3 \\
  --authroization-mode=Node,RBAC \\
  --bind-address=0.0.0.0 \\
  --enable-swagger-ui=true \\
  --etcd-servers=https://127.0.0.1:2379 \\
  --event-ttl=1h \\
  --runtime-config=api/all \\
  --service-cluster-ip-range=10.32.0.0/24 \\
  --service-node-port-range=30000-32767 \\
  --v=2
  --basic-auth-file=user-details.csv

/etc/kubernetes/manifests/kube-apiserver.yaml

apiVersion: v1
kind: Pod
metadata:
  creationTimestamp: null
  name: kube-apiserver
  namespace: kube-system
spec:
  containers:
  - command:
    - kube-apiserver
    - --authorization-mode=Node,RBAC
    - --advertise-address=172.17.0.107
    - --allow-privileged=true
    - --enable-admission-plugins=NodeRestriction
    - --enable-bootstrap-token-auth=true
    - --basic-auth-file=user-details.csv
    image: k8s.gcr.io/kube-apiserver-amd64:v1.11.3
    name: kube-apiserver

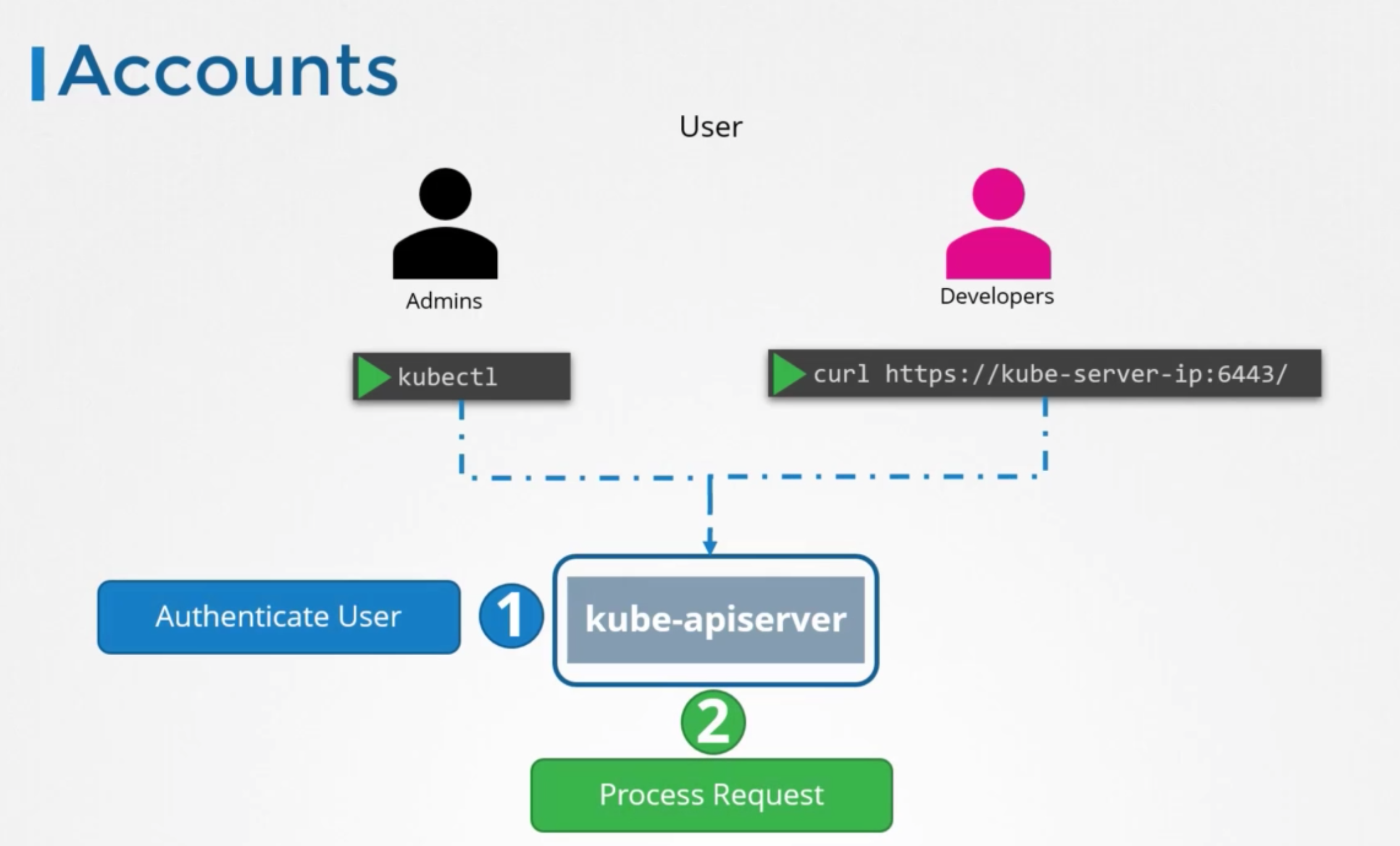

Authenticate User



[Static Password File]

curl -v -k https://master-node-ip:6443/api/v1/pods -u "user1:password123"

user-details.csv

password123,user1,u001,group1
password123,user2,u002,group1
password123,user3,u003,group2
password123,user4,u004,group2
password123,user5,u005,group2



[Static Token File]

curl -v -k https://master-node-ip:6443/api/v1/pods --header "Authorization: Bearer KpjCVbI7dFKSDHKWERMSDkfuslkdf783SKDUC9kd"

user-token-details.csv

KpjCVbI7dFKSDHKWERMSDkfuslkdf783SKDUC9kd,user10,u0010,group1
rjDKLjiedkSJif83lsDJFjid90kjsdlJK3lksdjF,user11,u0011,group1
ckjfEkdjfosijel3kdjfs98kdfjlikwkdjSkdfji,user12,u0012,group1
sklelDKjfoidVCKJf893klDKJFKsd89vkmdFjlsd,user13,u0013,group2
kEKdjodfkxckjlhEJFksoiuoi34dlke4fkjJkoij,user14,u0014,group2

--token-auth-file=user-details.csv



[BASIC Authenctication 요약]



Kubernetes에서 기본 인증 설정



kubeadm 설정에서 기본 인증 구성



아래 파일을 로컬에서 생성

/tmp/users/user-details.csv

password123, user1, u0001
password123, user2, u0002
password123, user3, u0003
password123, user4, u0004
password123, user5, u0005



kubeadm에서 구성된 kube-apiserver Static POD를 편집하여 사용자 세부 정보를 전달한다. 파일은 다음 위치에 있다.

/etc/kubernetes/manifests/kube-apiserver.yaml

apiVersion:v1
kind: Pod
metadata:
  name: kube-apiserver
  namespace: kube-system
spec:
  container :
  - command:
    -kube-apiserver
      <content-hidden>
    image: k8s.gcr.io/kube-apiserver-amd64:v1.11.3
    name: kube-apiserver
    volumeMounts:
    - mountPath: /tmp/users
      name: usr-details
      readOnly: true
   volumes:
   - hostPath:
       path: /tmp/users
       type: DirectoryOrCreate
     name: usr-details

basic-auth file을 포함하여 kube-apiserver를 Startup 하도록 옵션을 변경

apiVersion:v1
kind: Pod
metadata:
  name: kube-apiserver
  namespace: kube-system
spec:
  container :
  - command:
    - kube-apiserver
    - --authorization-mode=Node,RBAC
      <content-hidden>
    - --basic-auth-file=/tmp/users/user-details.csv
    image: k8s.gcr.io/kube-apiserver-amd64:v1.11.3
    name: kube-apiserver
    volumeMounts:
    - mountPath: /tmp/users
      name: usr-details
      readOnly: true
   volumes:
   - hostPath:
       path: /tmp/users
       type: DirectoryOrCreate
     name: usr-details

필요한 경우 role과 role binding을 생성

---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  namespace: default
  name: pod-reader
rules:
- apiGroups: [""]
  resources: ["pods"]
  verb: ["get", "watch", "list"]
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: read-pods
  namespace: default
subjects:
- kind: user
  name: user1
  apiGroup: rbac.authorization.k8s.io
roleRef:
  kind: Role
  name: pod-reader
  apiGroup: rbac.authorization.k8s.io

생성시에만 kube-api server로 사용자 credential을 사용하여 인증한다.

curl -v -k https://localhost:6443/api/v1/pods -u "user1:password123"
